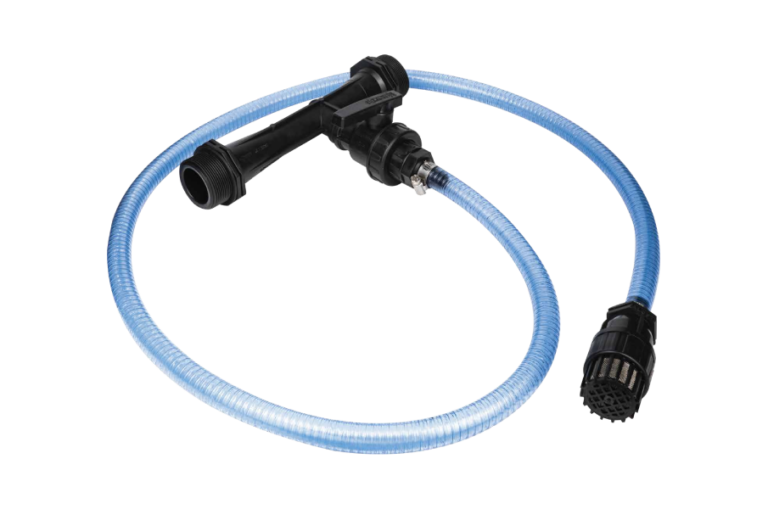

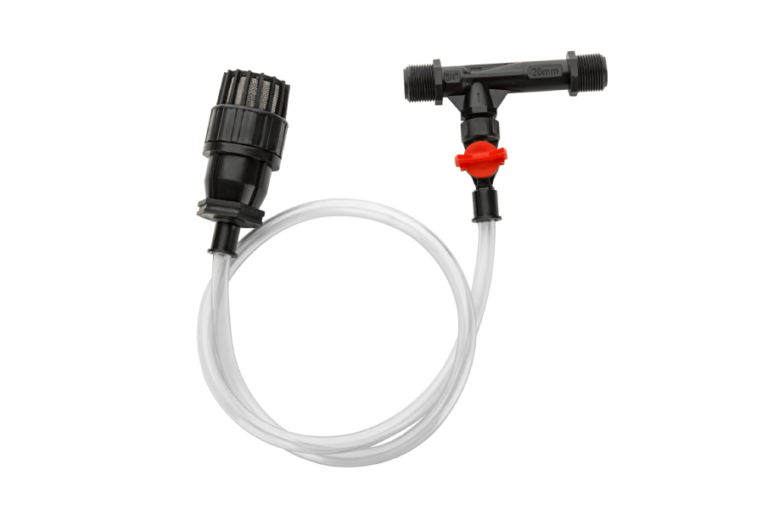

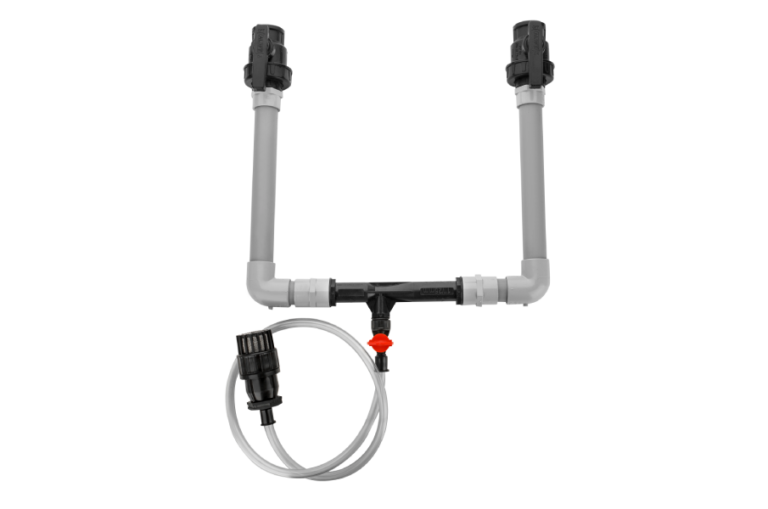

The Aloft Venturi Injector provides a simple and efficient solution for injecting fertilizers and agricultural chemicals directly into irrigation systems. Based on the proportionate injection principle, it ensures uniform nutrient application directly to the crop root zone. Its energy-efficient design, adjustable suction control, and built-in check valve help provide reliable fertigation while preventing backflow.
| Sr. No. | Pressure kg/cm² | Injector Size | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inlet | Outlet | 3/4" | 1" | 2" (Low Flow) | 2" (High Flow) | |||||
| Motive Flow LPH | Suction Flow LPH | Motive Flow LPH | Suction Flow LPH | Motive Flow LPH | Suction Flow LPH | Motive Flow LPH | Suction Flow LPH | |||
| 1 | 0.50 | 0.00 | 720 | 165 | 2100 | 265 | 5500 | 550 | 10320 | 1250 |
| 2 | 0.75 | 0.00 | 810 | 180 | 2500 | 272 | 6200 | 750 | 12300 | 1325 |
| 3 | 1.00 | 0.00 | 920 | 187 | 2900 | 290 | 7800 | 905 | 14400 | 1400 |
| 4 | 1.50 | 0.00 | 1140 | 185 | 3300 | 285 | 10120 | 995 | 16800 | 1450 |
| 5 | 2.00 | 0.00 | 1300 | 183 | 4100 | 280 | 11850 | 1200 | 18900 | 1450 |

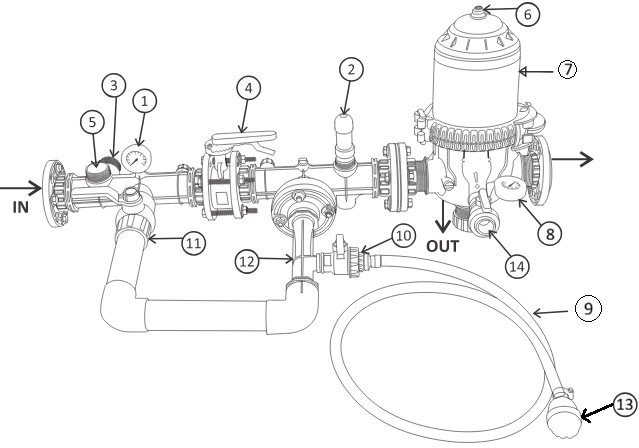

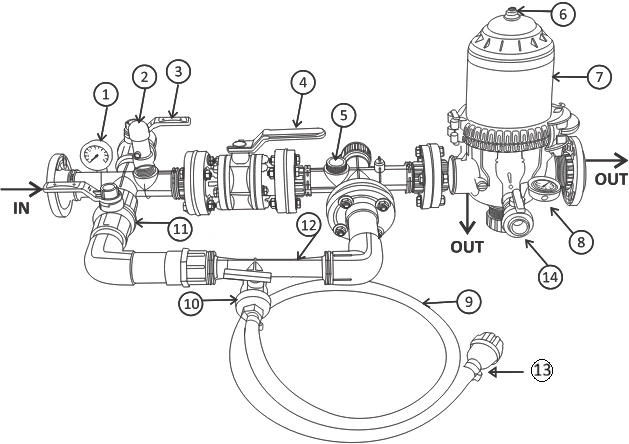

01 – Pressure Gauge
02 – Air Release Valve
03 – By Pass Valve
04 – Control Valve
05 – PRV Port
06 – Vacuum breaker
07 – Filter
08 – Pressure Gauge
09 – Suction Pipe
10 – Suction On/Off Valve
11 – Venturi On/Off Valve
12 – Venturi Injector
13 – Non-Return Valve
14 – Flush Valve
