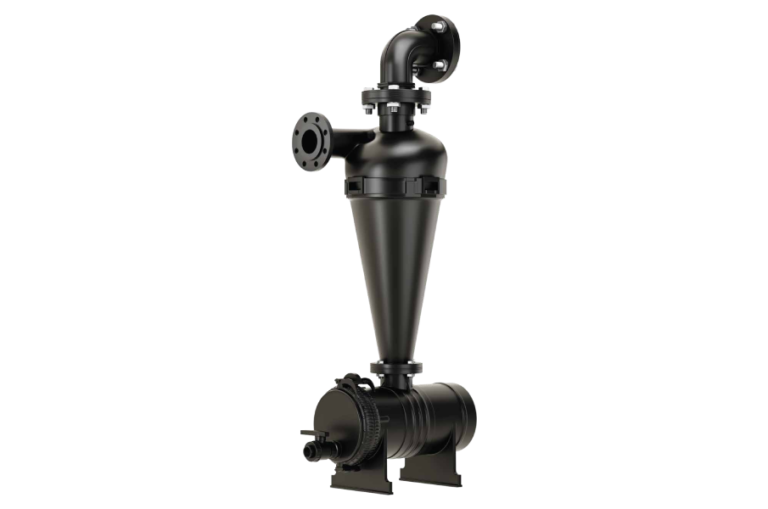

The Aloft Hydro-Cyclone Filter creates a powerful swirling action that drives sand and heavier particles away from the water stream and into a dedicated collection chamber. Engineered for challenging water sources, its rugged reinforced construction handles demanding irrigation environments while making accumulated solids simple to flush and remove.
The Hydro-Cyclone Filter is suitable for:
Technical Specifications
| Model No. | AIPL-HC50 | AIPL-HC65 | AIPL-HC80 | |
|---|---|---|---|---|
| Outlet Connection (mm) | 50mm | 65mm | 80mm | |
| Rec. Range of Flow Rate (m³/hr) | 15-25 m³/hr | 25-40 m³/hr | 35-50 m³/hr | |
| Nominal Flow Rate (m³/hr) | 25 m³/hr | 40 m³/hr | 50 m³/hr | |
| Dimensions (mm) | A | 954.8 | 954.8 | 994 |
| B | 821 | 828.5 | 876 | |
| C | 220.4 | 220.4 | 262.5 | |
| D | 153 | 153 | 183 | |
| E | 289.5 | 289.5 | 389.5 | |
| Capacity of Underflow Tank (ltr) | 8 | 8 | 8 | |
| Gross Weight (kg) | Empty (kg) | 7.580 | 7.765 | 10.360 |
| In Operation (kg) | 22.724 | 23.934 | 32.00 | |

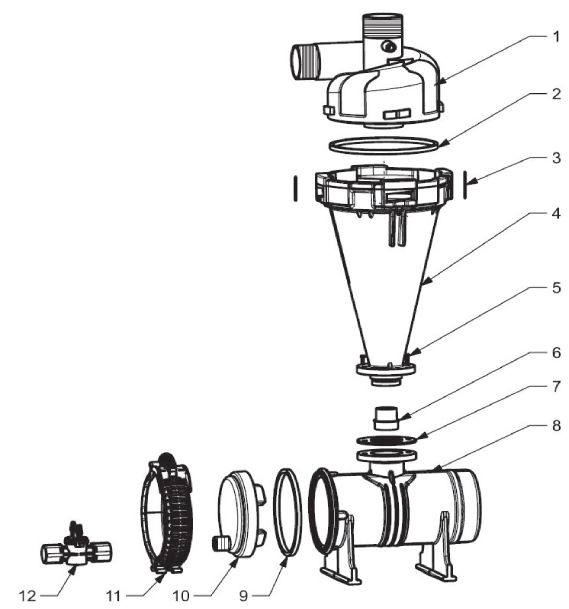

| Sr. No. | Part Name |
|---|---|
| 1 | Manifold Body (BSP Threaded) |
| 2 | Cone Main O-Ring |
| 3 | SS Lock Pin |
| 4 | Cyclone Cone |
| 5 | Nut & Bolt |
| 6 | PU Bush for Tank |
| 7 | Rubber Gasket for Tank |
| 8 | Collector Tank |
| 9 | Collector Tank O-Ring |
| 10 | Collector Cap |
| 11 | Clamp |
| 12 | 1" PP Ball Valve (FxF) |
Dealing with sand-heavy irrigation water? Share your water source and system requirements with our team. We’ll help you choose the right Hydro-Cyclone Filter for effective sand separation, smooth system operation, and long-term irrigation performance.
