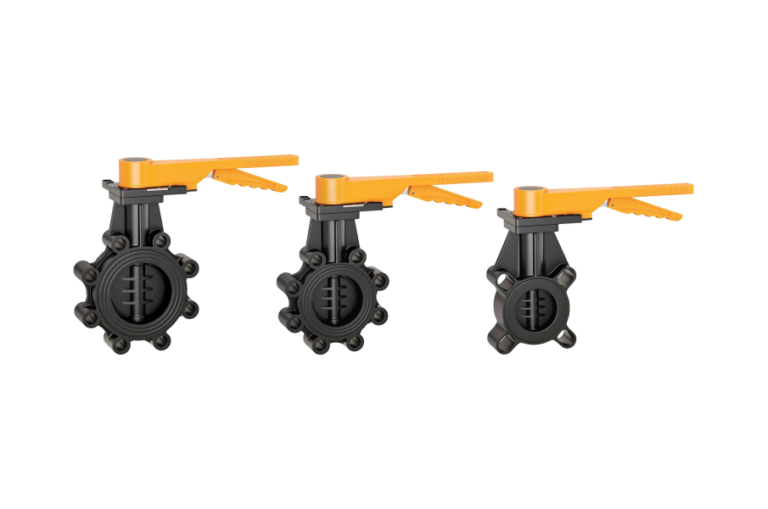

Butterfly Valve

Butterfly-Valve-3 (1) Butterfly-Valve-4 Butterfly-Valve-5 Setup image for - Screen filter, disc filter, Hydrocyclone Filter, Ventury Injector, Butterfly Valve

Precise Flow Control for Efficient Irrigation Networks

The Aloft Butterfly Valve is designed to provide smooth and reliable flow regulation across irrigation and water distribution systems. Its lightweight uPVC body, low-torque disc design, corrosion-resistant components, and dependable EPDM sealing ensure efficient operation with minimal pressure loss. Easy to install and operate, it is an ideal choice for controlling, balancing, or shutting off water flow in demanding field conditions.

Features

  • Lightweight, easy to install.
  • One-piece body made of uPVC.
  • Disc designed to ensure low torque and low pressure loss.
  • Rust prevention is ensured for all main parts, such as the disc and shaft, as well as small parts like bolts and washers, which are made of high-grade stainless steel for superior corrosion resistance.
  • Lock plate: Provided with throttling notches at every 10° up to 90° for balancing or shut-off service, the lever can be pad
  • It has an EPDM rubber seal for good sealing performance.

Applications

The Butterfly Valve is suitable for:
  • Drip Irrigation Systems
  • Filtration Units
  • Water Flow Regulation
  • Water Distribution Lines
  • Flow Balancing
  • Shut-Off Applications
  • Compact Piping Installations
  • Agricultural Irrigation Networks
  • Irrigation Automation

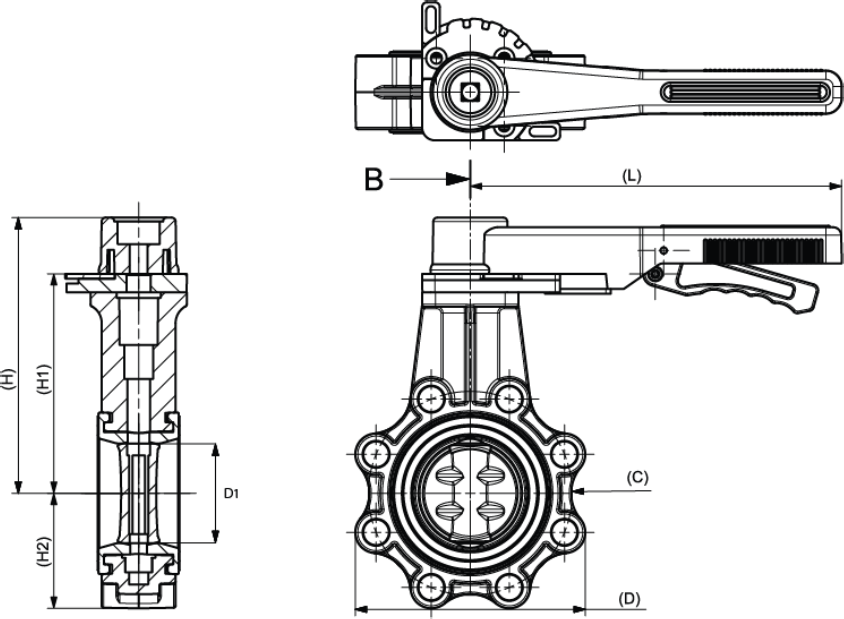

Dimensions - Butterfly Valve

Available Sizes:
  • 2"
  • 2.5"
  • 3"
  • 4"
Dimensions
50mm
65mm
80mm
100mm
D
109.1
143.3
164.7
194.3
H
167.1
171.8
179.8
191.5
H1
101
136.8
141.8
161.2
H2
54.9
71.7
82.4
103.2
L
231.3
231.3
231.3
231.3
C
Φ100.10
Φ127.00
Φ148.00
Φ172.10

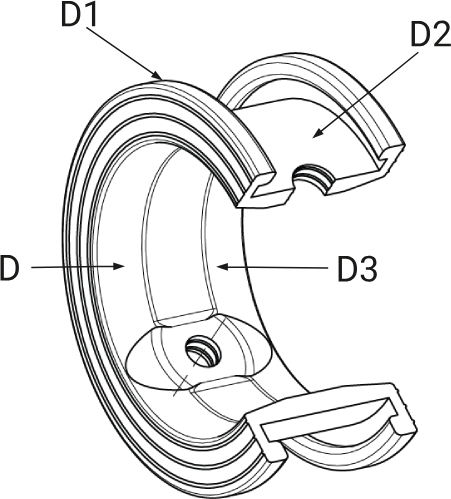

Rubber Sleeve of Butterfly Valve– Dimensions

Dimensions
50mm
65mm
80mm
100mm
D1
90.00
100.5
128
135.30
D2
65.40
76.2
92.5
116.40
D3
50.40
64.5
79.5
103.40
Download Brochure
  • Quality You Can Trust

Take Control of Every Drop

Ensure smooth and dependable water flow across your irrigation network with Aloft Butterfly Valves. Tell us about your pipeline size and application needs, and our team will help you select the ideal valve for efficient flow regulation and long-lasting field performance.
