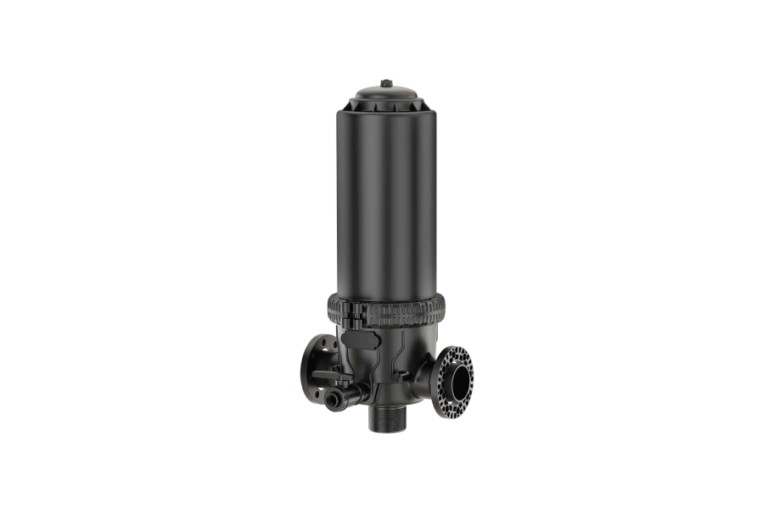

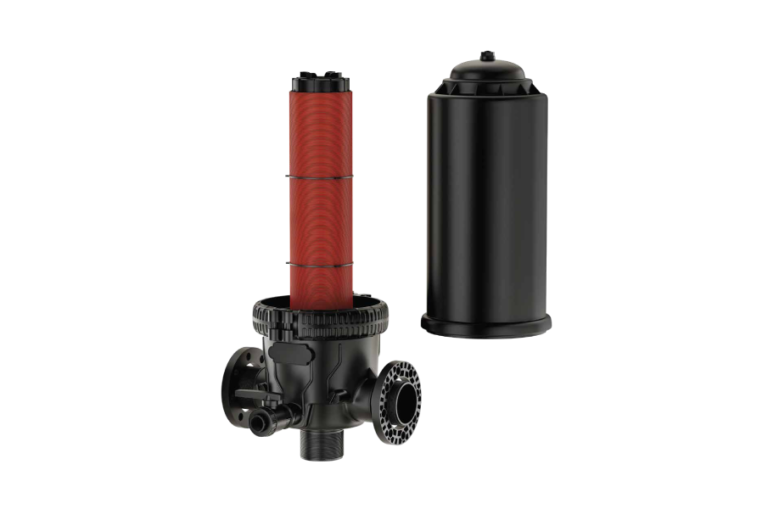

The Aloft Disc Filter uses a precision-grooved disc stack to trap contaminants across multiple filtration layers. As water moves through the intersecting channels, fine particles and suspended solids are retained within the disc element, helping reduce clogging across the irrigation network. Built for demanding field conditions and convenient servicing, it supports cleaner water delivery and dependable system operation.
Available End Connection:
The Disc Filter is suitable for:
Model | DF 250 - 2" | DF 300 - 2.5" | DF 400 - 2.5" | DF 400 - 3" | DF 500 - 3" |
|---|---|---|---|---|---|
Nominal Size | Ф 2" | Ф 2.5" | Ф 2.5" | Ф 3" | Ф 3" |
Inlet/Outlet Connection Size (mm) | 50 | 65 | 65 | 80 | 80 |
Maximum Operating Pressure (kg/cm²) | 4 kg/cm² | ||||
Maximum Recommended Flow | 417 LPM (30m³/hr) | 417 LPM (30m³/hr) | 667 LPM (40m³/hr) | 667 LPM (40m³/hr) | 833 LPM (50m³/hr) |
Range of Flow Rate (m³/hr) | 20-30 | 25-35 | 30-40 | 35-45 | 40-50 |

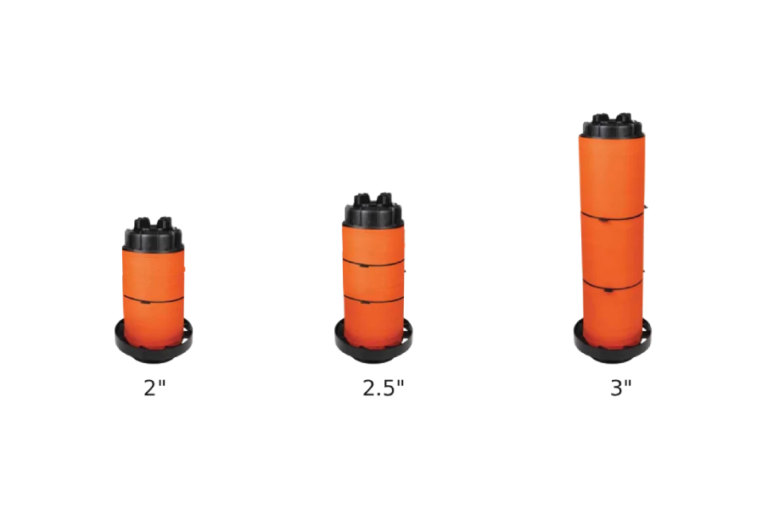

Filter Element | 120 Mesh PP Plastic Disc (Removable Element) | ||||
Filtration Area in (cm²) | 1045 | 1045 | 1385 | 1385 | 1800 |
Length of Disc Element in (mm) | 336 | 336 | 425 | 425 | 517 |
Drain Valve Port | 1" Plastic Female Thread | ||||
Vacuum Breaker Port | 1/2" Brass Insert Female Thread | ||||
Pressure Gauge Port | 1/4" Brass Insert Female Thread | ||||
Dimension of Filter in mm | |||||
Length | 518 | 538 | 605 | 605 | 700 |
Width | 295 | 329.5 | 329.5 | 331 | 331 |
Height | 294 | 294 | 294 | 294 | 294 |
Choosing the right filter depends on your water source, flow rate, and irrigation needs. Share your requirements with our team, and we’ll help you find a filtration solution built for efficient and reliable operation.
