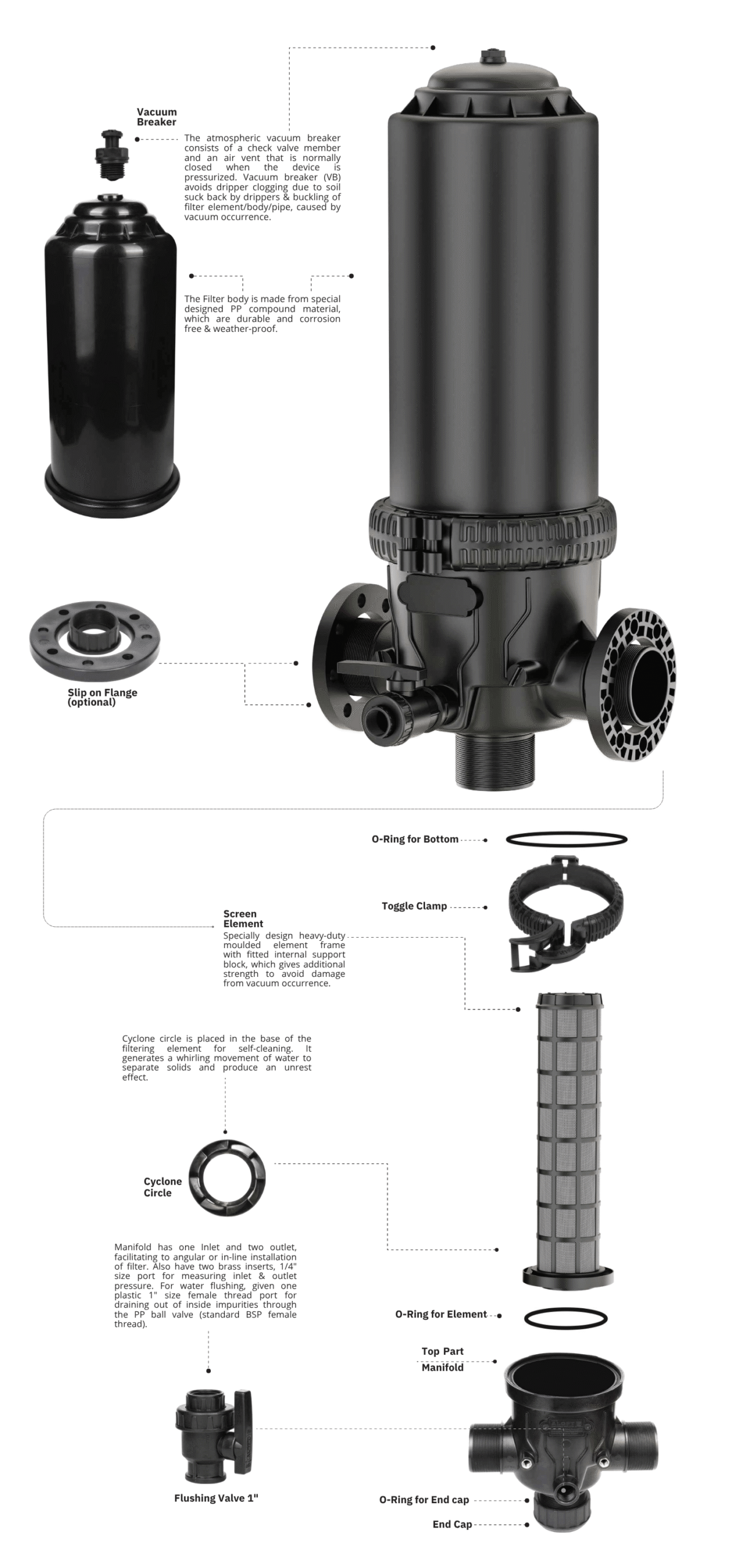

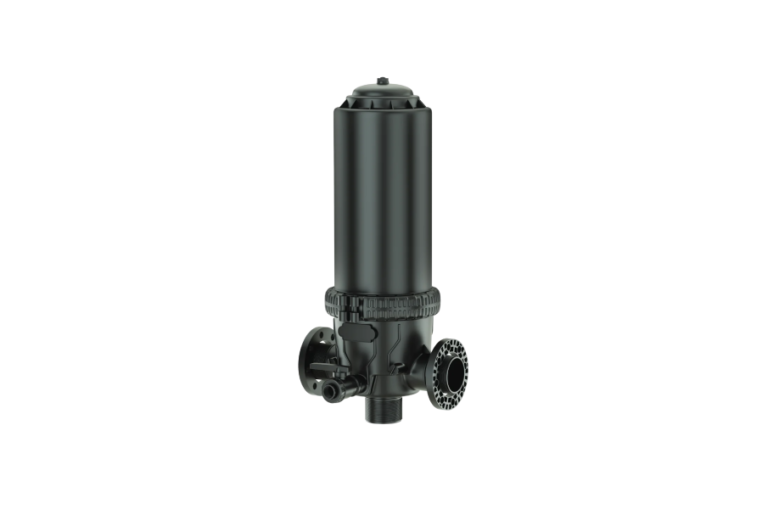

The Aloft Screen Filter is engineered to protect irrigation systems by effectively removing suspended particles, debris, and impurities from water before they reach emitters, drippers, and sprinklers. Designed for durability and ease of maintenance, it ensures uninterrupted water flow and optimal irrigation performance.
The Screen Filter is suitable for:
Available End Connection:
Model | SF 250 - 2" | SF 300 - 2.5" | SF 400 - 2.5" | SF 400 - 3" | SF 500 - 3" |
|---|---|---|---|---|---|
Nominal Size | Ø 2" | Ø 2.5" | Ø 2.5" | Ø 3" | Ø 3" |
Inlet/Outlet Connection Size (mm) | 50 | 65 | 65 | 80 | 80 |
Maximum Recommended Flow | 417 LPM (25m³/hr) | 417 LPM (30m³/hr) | 667 LPM (40m³/hr) | 667 LPM (40m³/hr) | 833 LPM (50m³/hr) |
Maximum Operating Pressure (kg/cm²) | 4 kg/cm² | ||||
Range of Flow Rate (m³/hr) | 20–30 | 25–35 | 30–40 | 35–45 | 40–50 |

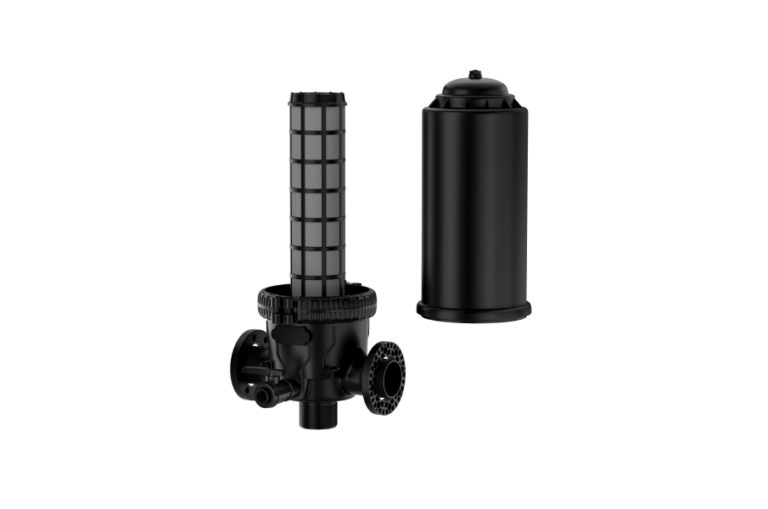

Filter Element | 120 Mesh SS Screen (Removable Element) with moulded plastic | ||||
Filtration Area in (cm²) | 490 | 490 | 825 | 825 | 1090 |

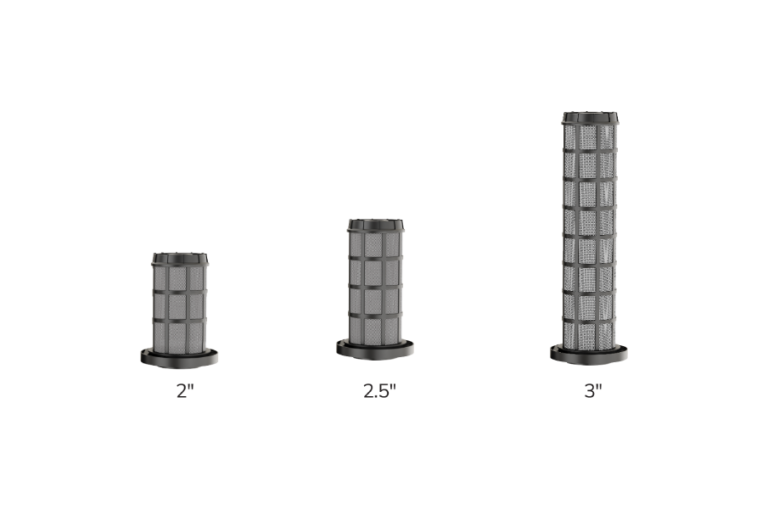

Length of Screen Element in (mm) | 322.5 | 322.5 | 405 | 405 | 502 |
Drain Valve Port | 1" Plastic Female Thread | ||||
Vacuum Breaker Port | 1/2" Brass Insert Female Thread | ||||
Pressure Gauge Port | 1/4" Brass Insert Female Thread | ||||
Dimension of Filter in mm | |||||
Length | 518 | 538 | 605 | 605 | 700 |
Width | 295 | 329.5 | 329.5 | 331 | 331 |
Height | 294 | 294 | 294 | 294 | 294 |
* 80 Mesh SS Screen option available on request.
Designed and manufactured by Aloft Irritech, the Screen Filter combines precision engineering, superior filtration efficiency, and rugged durability to deliver dependable performance in every irrigation application.
